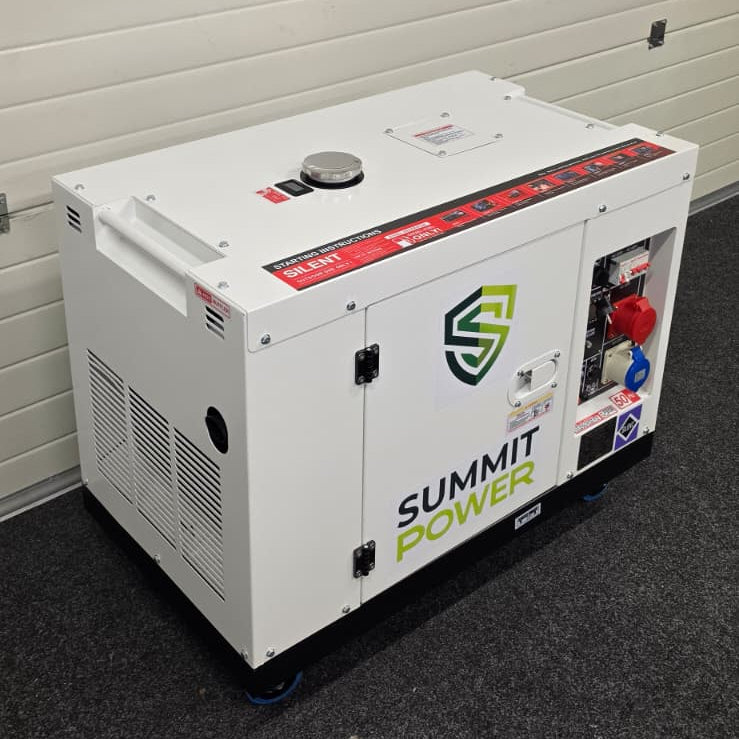

PM120 - 12kVA Diesel Generator

PM120 - 12kVA Diesel Generator

The PM120 is a powerful three-phase diesel generator designed for reliable performance in demanding applications.

Single and Three Phase outputs.

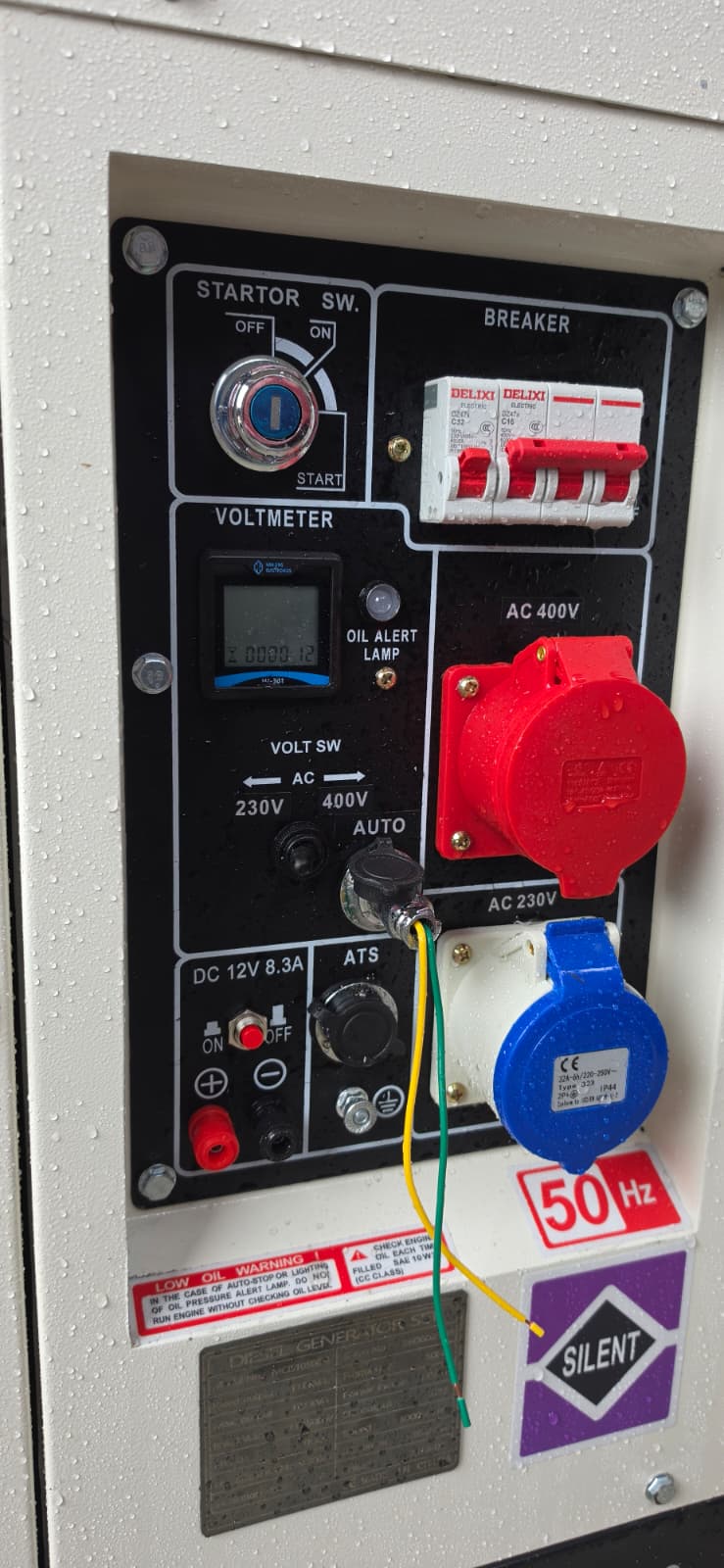

Featuring ATS as well as 2-Wire connection ports and electric start, it delivers consistent power output for commercial and industrial use.

Specifications

• Model: PM120
• Rated Output: 12KVA
• Max Output: 12KVA
• Rated AC Voltage: 230V / 400V
• Frequency: 50Hz
• Engine Speed: 3000 RPM
• Power Factor: 1
• DC Output: 12V
• Phase: Three
• AC Current: 40A / 16A
• Insulation Class: F
• Max Altitude: <1000m
• Connection Type: ATS and 2-Wire Ports
• Starting System: Electric
• Noise Level: 70–75 dB
• Engine Type: Single Cylinder, 4-Stroke, Air-Cooled
• Displacement: 530cc
• Fuel Type: Diesel
• Combustion Type: Direct Injection
• Dimensions: 940 x 540 x 800mm
• Net Weight: 150kg
• Gross Weight: 155kg
